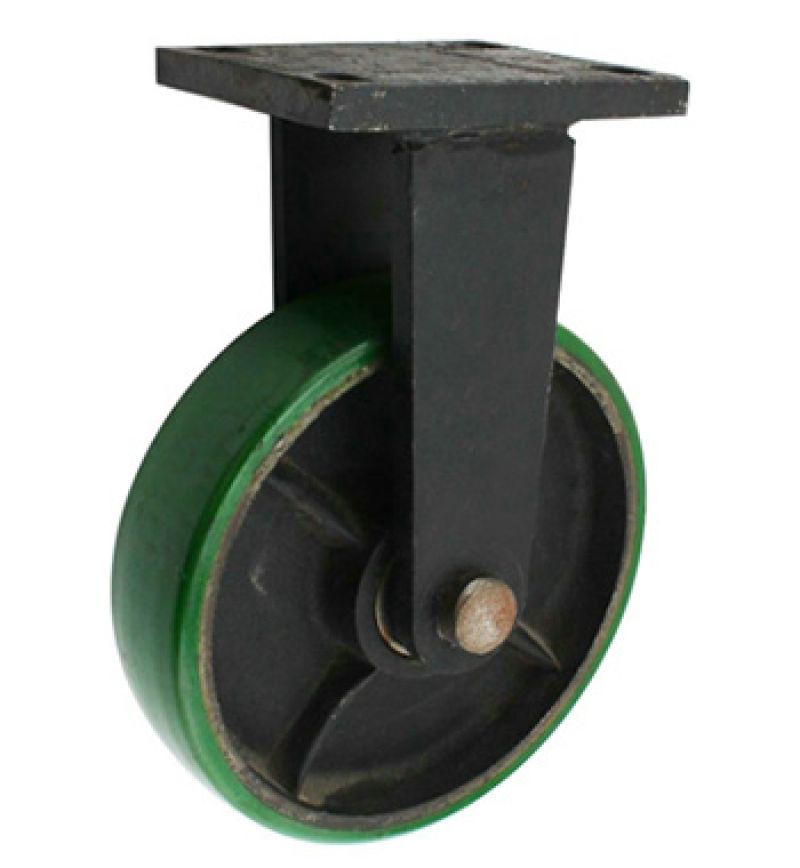

Iron core with polyurethane A - Top plate fixed
Date:2015-11-02 17:11:51 Reading quantity:
Name：Iron core with polyurethane A - Top plate fixed
Item No：
Material：Iron core with polyurethan
Inch number:8 inch
Brake mode:No brake
Product details
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
轮径 (mm) Diameter |
轮宽 (mm) Width |
承载 Load Capacity |
轴承 Bearing |
底板尺寸 (mm) Plate Size |
安装孔距 (mm) Hole Spacing |
安装孔直径 (mm) Hole Size |
转动半径 (mm) Swivel Radius |
安装高度 (mm) Height |
|
|
Dimension parameter
|
200×50 | 50 | 1500 | Ball | 135×105 | 110×75 | 14.2 | - | 276 |
Specification parameter
|
Suitable size of caster amd top plate (Extra-heavy duty iron caster A series)
|
|||||
|
序号 No. |
|
|
|
|
|
|
脚轮尺寸 Caster Size |
底板尺寸(mm) Plate Size |
底板孔距(mm) Hole Spacing |
底板孔径(mm) Hole Size |
转动半径(mm) Swivel Radius |
|
|
1
|
4"
|
135×105
|
110×75
|
14.2
|
125
|
|
2
|
5"
|
135×105
|
110×75
|
14.2
|
125
|
|
3
|
6"
|
135×105
|
110×75
|
14.2
|
130
|
|
4
|
8"
|
135×105
|
110×75
|
14.2
|
148
|
|
5
|
10"
|
135×105
|
110×75
|
14.2
|
190
|
