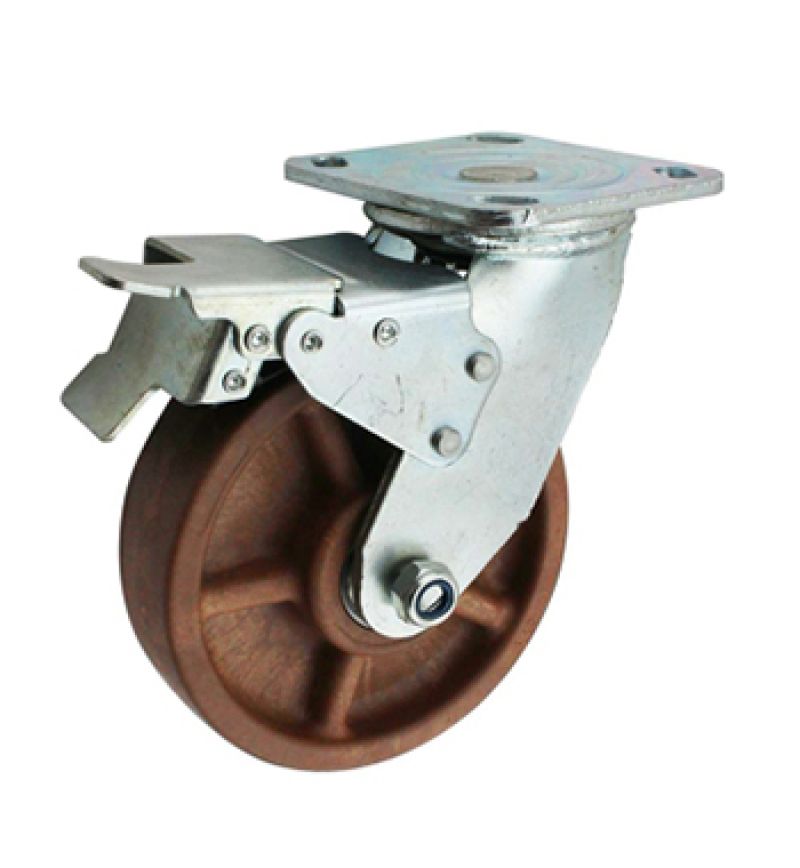

High-temperature resistant - Top plate with dual brake
Date:2015-11-03 11:11:53 Reading quantity:
Name：High-temperature resistant - Top plate with dual brake
Item No：
Material：High temperature resistant 280℃
Inch number:6 inch
Brake mode:Brake
Product details
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
轮径 (mm) Diameter |
轮宽 (mm) Width |
承载 Load Capacity |
轴承 Bearing |
底板尺寸 (mm) Plate Size |
安装孔距 (mm) Hole Spacing |
安装孔直径 (mm) Hole Size |
转动半径 (mm) Swivel Radius |
安装高度 (mm) Height |
|
|
Dimension parameter
|
150 | 50 | 450 | High temperature ball | 114×98 | 82×70 | 11 | 118 | 189 |
Specification parameter
|
Suitable size of caster and top plate (Heavy duty high-temperature resistant caster series)
|
|||||
|
序号 No. |
|
|
|
|
|
|
脚轮尺寸 Caster Size |
底板尺寸(mm) Plate Size |
底板孔距(mm) Hole Spacing |
底板孔径(mm) Hole Size |
转动半径(mm) Swivel Radius |
|
|
1
|
4"
|
114×98
|
82×70
|
11
|
93
|
|
2
|
5"
|
114×98
|
82×70
|
11
|
105
|
|
3
|
6"
|
114×98
|
82×70
|
11
|
118
|
|
4
|
8"
|
114×98
|
82×70
|
11
|
143
|
