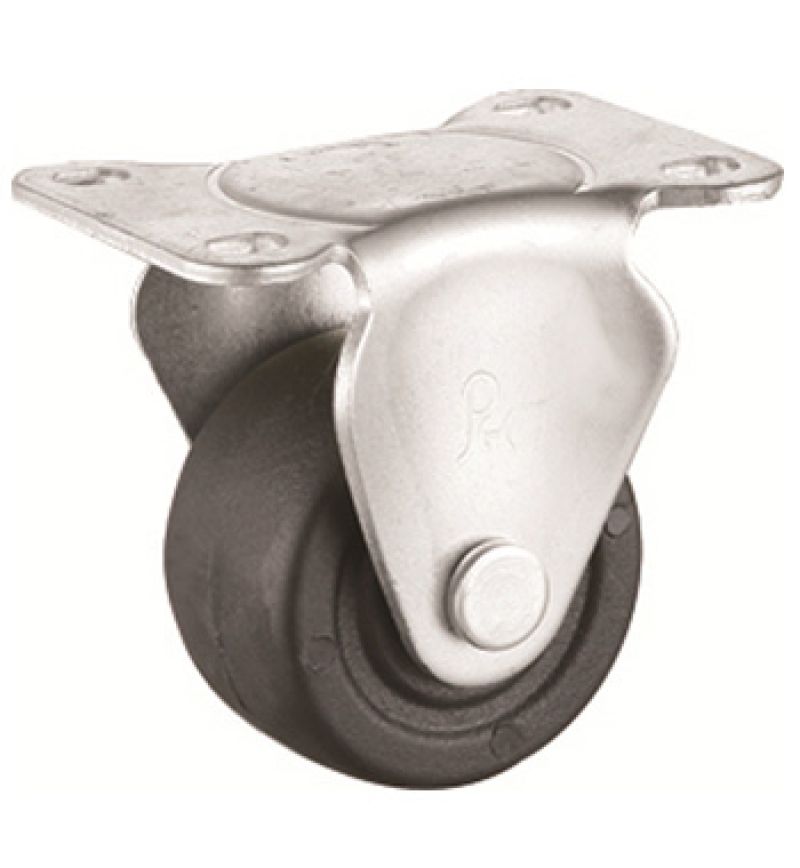

Low barycenter nylon 200kg - Top plate fixed
Date:2015-11-02 17:11:18 Reading quantity:
Name:Low barycenter nylon 200kg - Top plate fixed
Item No:
Material:Nylon
Inch number:2.5 inch
Brake mode:No brake
Product details



Product parameters










轮径
(mm)
Diameter
轮宽
(mm)
Width
承载
Load Capacity
轴承
Bearing
底板尺寸
(mm)
Plate Size
安装孔距
(mm)
Hole Spacing
安装孔直径
(mm)
Hole Size
转动半径
(mm)
Swivel Radius
安装高度
(mm)
Height
Dimension parameter

63 38.5 200 Kingpin 93×64 74×45 8.5 - 88



Specification parameter

Suitable size of caster and top plate (Low barycenter commercial machinery series)

序号

No.





















脚轮尺寸

Caster Size

底板尺寸(mm)

Plate Size

底板孔距(mm)

Hole Spacing

底板孔径(mm)

Hole Size

转动半径(mm)

Swivel Radius

1
2"
71×54
54×36
7
50
2
2.5"
93×64
74×45
8.5
66
3
3"
96×67
74×45
8.5
48
4
3"
96×67
74×45
8.5
62
5
3"
105×80
83×60
8.5
56
6
3"
108×90
83×60
9
60
