Current position: Home > Products > Industrial casters series > Low barycenter commercial machinery caster series

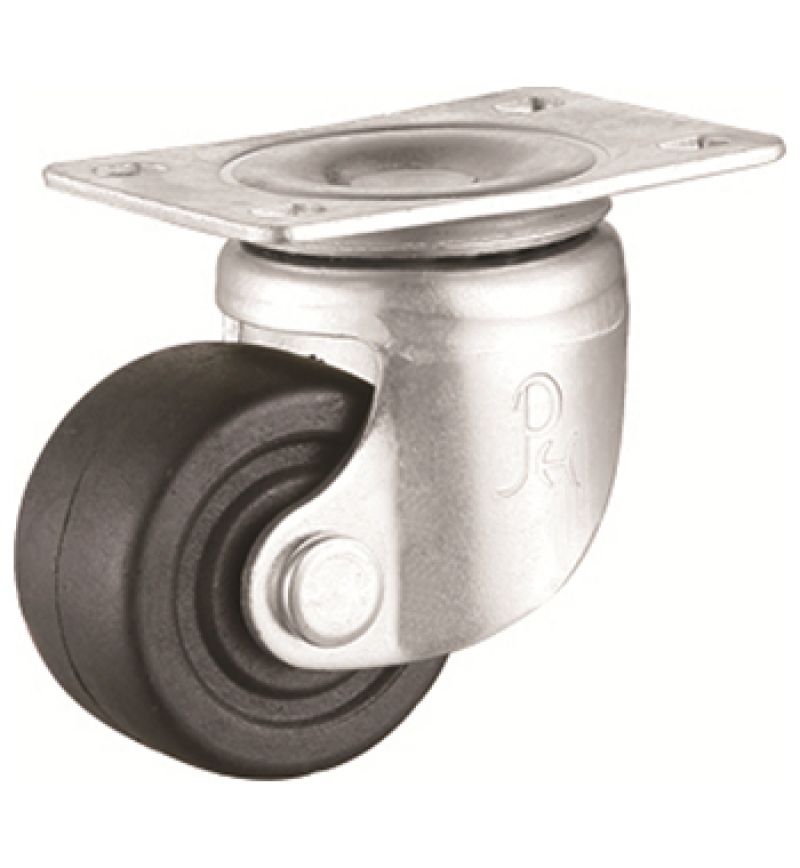

Low barycenter nylon - Top plate swivel
Date:2015-11-02 17:11:23 Reading quantity:
Name：Low barycenter nylon - Top plate swivel
Item No：
Material：Nylon
Inch number:2.5 inch
Brake mode:No brake
Product details
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
轮径 (mm) Diameter |
轮宽 (mm) Width |
承载 Load Capacity |
轴承 Bearing |
底板尺寸 (mm) Plate Size |
安装孔距 (mm) Hole Spacing |
安装孔直径 (mm) Hole Size |
转动半径 (mm) Swivel Radius |
安装高度 (mm) Height |
|
|
Dimension parameter
|
63 | 38.5 | 200 | Kingpin | 93×64 | 74×45 | 8.5 | 66 | 88 |
Specification parameter
|
Suitable size of caster and top plate (Low barycenter commercial machinery caster series)
|
|||||
|
序号 No. |
|
|
|
|
|
|
脚轮尺寸 Caster Size |
底板尺寸(mm) Plate Size |
底板孔距(mm) Hole Spacing |
底板孔径(mm) Hole Size |
转动半径(mm) Swivel Radius |
|
|
1
|
2"
|
71×54
|
54×36
|
7
|
50
|
|
2
|
2.5"
|
93×64
|
74×45
|
8.5
|
66
|
|
3
|
3"
|
96×67
|
74×45
|
8.5
|
48
|
|
4
|
3"
|
96×67
|
74×45
|
8.5
|
62
|
|
5
|
3"
|
105×80
|
83×60
|
8.5
|
56
|
|
6
|
3"
|
108×90
|
83×60
|
9
|
60
|
